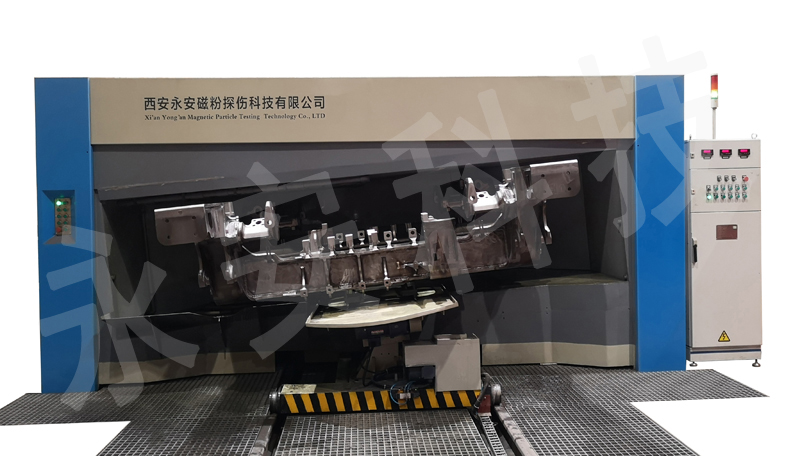

XWD-D型旋转磁场动车、地铁车辆构架磁粉探伤机

适用范围：

适用于动车、地铁车辆构架的专用磁粉探伤

特点及技术指标：

 1. 采用自主知识产权的旋转磁场磁化技术对探伤零件非接触磁化，适应能力强，检测可靠

 2. 工件放置在可倾斜输送台车，传递方便，检测效率高

 3. PLC程序控制喷淋与磁化过程，减少影响探伤的人为因素，操作简单

 4. 倾斜式腔口结构使磁悬液的回流极为便利，减了磁悬液的浪费

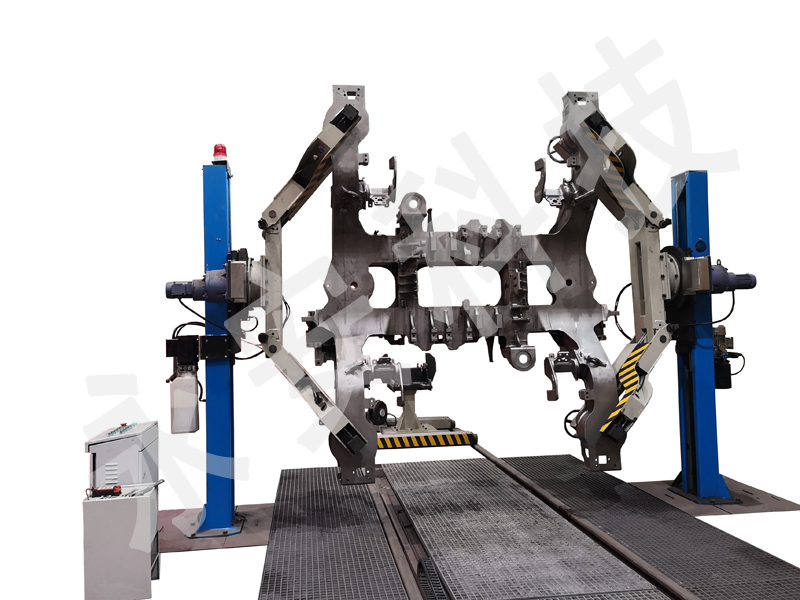

 5. 翻转机举升工件平稳可靠，工件±180°翻转，便于观察

 6. 磁化电流不等值衰减，剩磁满足要求

 7. 磁化方式：旋转磁场

 8. 额定输入功率：120kW

 9. 旋转磁化峰值电流：0-3000A连续可调

 10. 磁化线圈断面尺寸：4088×988mm

 11. 工件回转速度：0-1r/min

 12. 检测灵敏度：清晰显示A1型标准试片15/50的人工缺陷

 13. 剩磁：不大于0.3mT

 14. 主机外形尺寸：9.7m×6.5m×3.4m(三工位)

                   7.2m×6.5m×3.4m(二工位)

 15. 可检工件最大重量：2000kg

XWD-D Magnetic Particle Flaw Detector For CRH & Metro Bogie Frame

Applicable scope

     It is suitable for the magnetic particle testing of CRH and metro bogie frame.

Features and Technical parameters

  1.  Adopt to the independent intellectual property rights of rotating magnetic field non-contact magnetization, magnetic field distribution more uniform, use and reliable

  2.  The workpiece is placed on the tilting trolley, which is convenient to transfer and has high detection efficiency

  3.  Inspection process adopts PLC programmable controller control, easy operation and reliable

  4.  Inclined cavity structure makes the magnetic suspension returning very convenient, which reducing the waste of the magnetic suspension

  5.  Turnover mechanism is stable and reliable for lifting wokpiece and rotating wokpiece in ±180°,  convenient for observation

  6.  Magnetizing current is not equivalent attenuation, remanence meets the requirements

  7.  Magnetization mode: Rotary Magnetic Field

  8.  Rated input power: 120kW

  9.  The peak value current of rotating magnetization:0-3000A continuously adjustable

  10.  Magnetizing coil section: 4088 × 988mm

  11.   Workpiece rotating speed: 0-1r/min

  12.  Detecting sensitivity: Clearly displays the artificial faults of A1 standard test piece 15／50

  13.  Residual Field: ≤0.3mT

  14.  Mainframe Contour Size: 9.7m×6.5m×3.4m(three workstation )

                                                  7.2m×6.5m×3.4m(two workstation )

  15.  Max Workpiece Weight: 2000 kg
