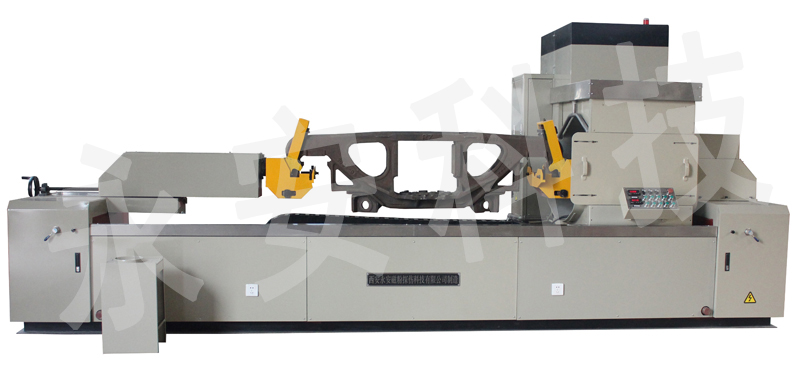

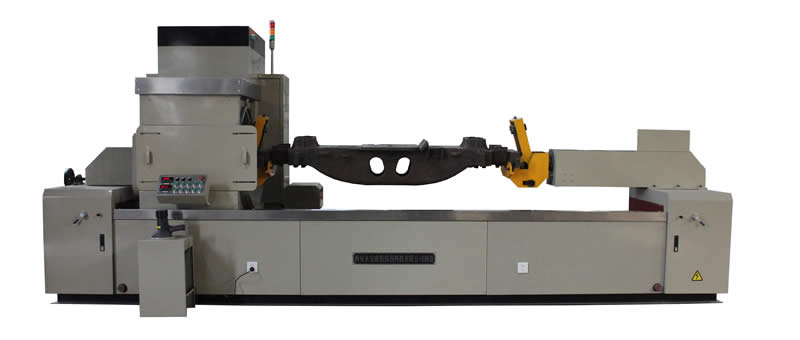

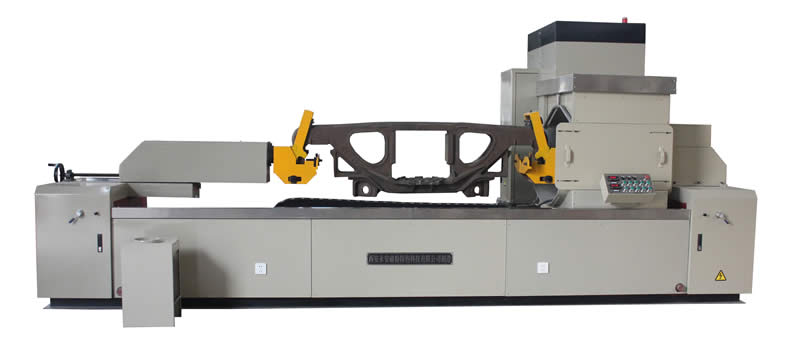

XWD-C型旋转磁场摇枕、侧架磁粉探伤机

适应范围：

适应于铁路货车走行部摇枕、侧架的磁粉探伤检测

特点及技术指标

1.   采用自主知识产权的旋转磁场磁化技术对检测工件非接触磁化，探伤表面磁场强度分布均匀，检测可靠，适应能力强

2.   检测工件一次通过隧道式磁化装置即可完成探伤，检测效率高

3.   独特的工件夹持及定位锁紧结构可同时兼容多种摇枕、侧架的探伤作业

4.   磁化电流由可控硅调压模块控制，电流大小可根据检测的需要随时调整

5.   零件可自动360°自由回转，并实现动态换向，便于观察磁痕

6.   探伤过程采用PLC控制，操作应简便可靠。一次性完成工件的转动、磁化装置的移动，喷淋及磁化过程，避免了影响探伤的人为因素

7.   整机为床式一体化设计，无须特殊基础，安装维修简便

8.   输入功率：60kW

9.   磁化方式：旋转磁场

10. 磁化峰值电流：0-2500A连续可调

11. 检测灵敏度：清晰显示A1型标准试片 15/50的人工缺陷

12. 检测部位表面磁场强度：≥2400A/m

13. 退磁效果：不大于0.3mT

14. 磁化线圈断面尺寸：870×870mm

15. 磁悬液箱容量：80L

16. 可检摇枕、侧架最大长度：2800mm

17. 可检摇枕、侧架最大重量：800kg

18. 主机外形尺寸：6.0×1.7×2.2m

19. 主机总重量：4800kg

XWD-C Magnetic Particle Flaw Detector for swing bolster and side frame

Applicable scope

For the magnetic particle testing of swing bolster, bogie side frame of rolling stock

Features and Technical parameters

1.        Adopt to the independent intellectual property rights of rotating magnetic field non-contact magnetization, magnetic field distribution more uniform, use and reliable

2.        By inspecting through a tunnel magnetizing device can complete detection, high detection efficiency

3.        Unique work both clamping  swing bolsters and side frames can be also compatible with a variety of flaw detection

4.        Magnetizing current controlled by SCR module of voltage regulation, current can be adjusted at any time according to the need of the inspection

5.        Adopted the variable frequency drive to control work piece rotation, speed can be set freely and realize dynamic commutation, easy to observe the magnetic mark

6.        Inspection process adopts PLC programmable controller control, easy operation and reliable

7.        Bed struct integration design, without special foundation, easy installation and maintenance

8.        Magnetization mode: rotating magnetic field

9.        Input power: 60kW

10.    The peak value current of rotating magnetization:0-2500A continuously adjustable

11.    Detecting sensitivity: Clearly displays the artificial defect of A1 standard test piece 15/50

12.    Magnetic intensity of testing parts surface: ≥2400A/m

13.    Residual Field: ≤0.3mT

14.    Magnetization coil inner cavity section size: 850×850mm

15.    Magnetic suspension tank capacity:80L

16.    maximum length can be detected:2800mm

17.    maximum weight can be detected:800mm

18.    Mainframe exterior size: 6.0m×1.7m×2.2m

Mainframe weight: 4800kg
