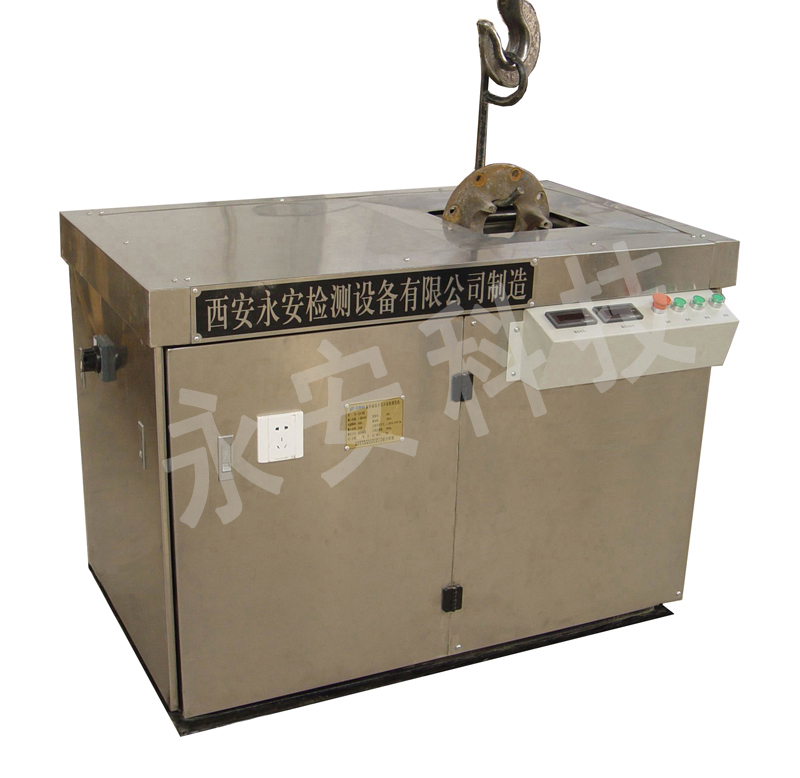

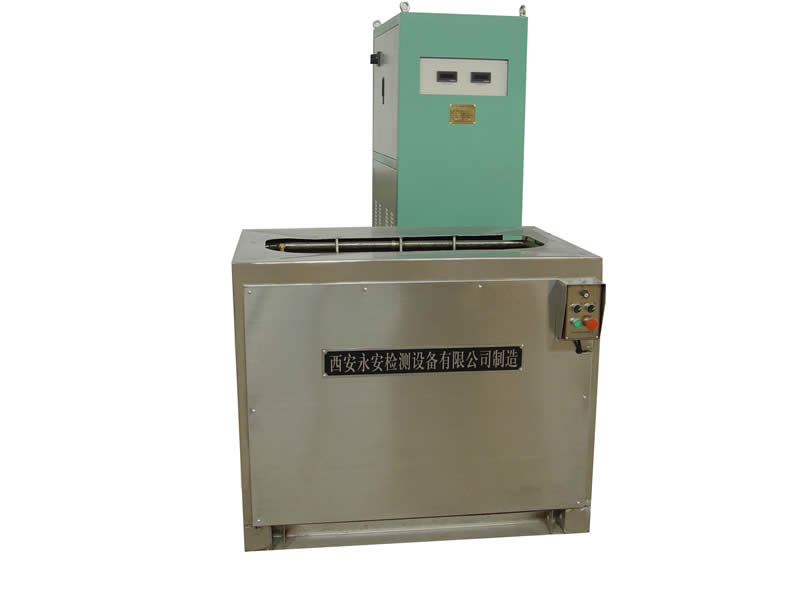

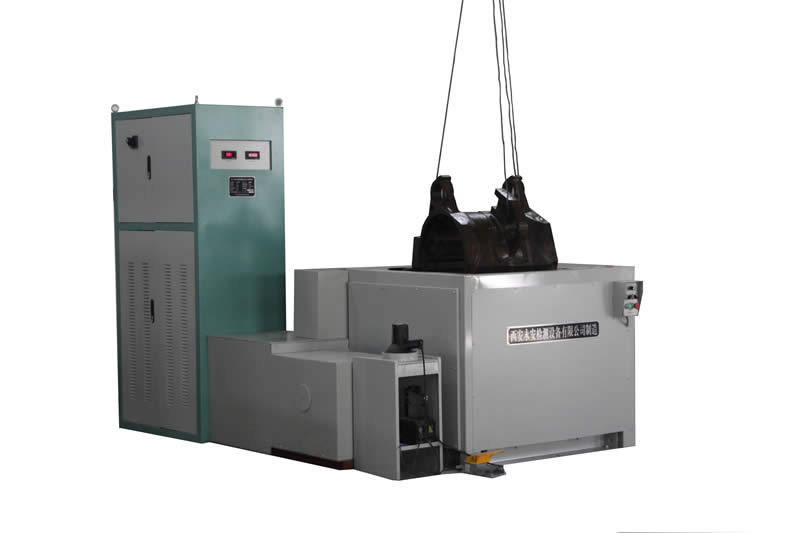

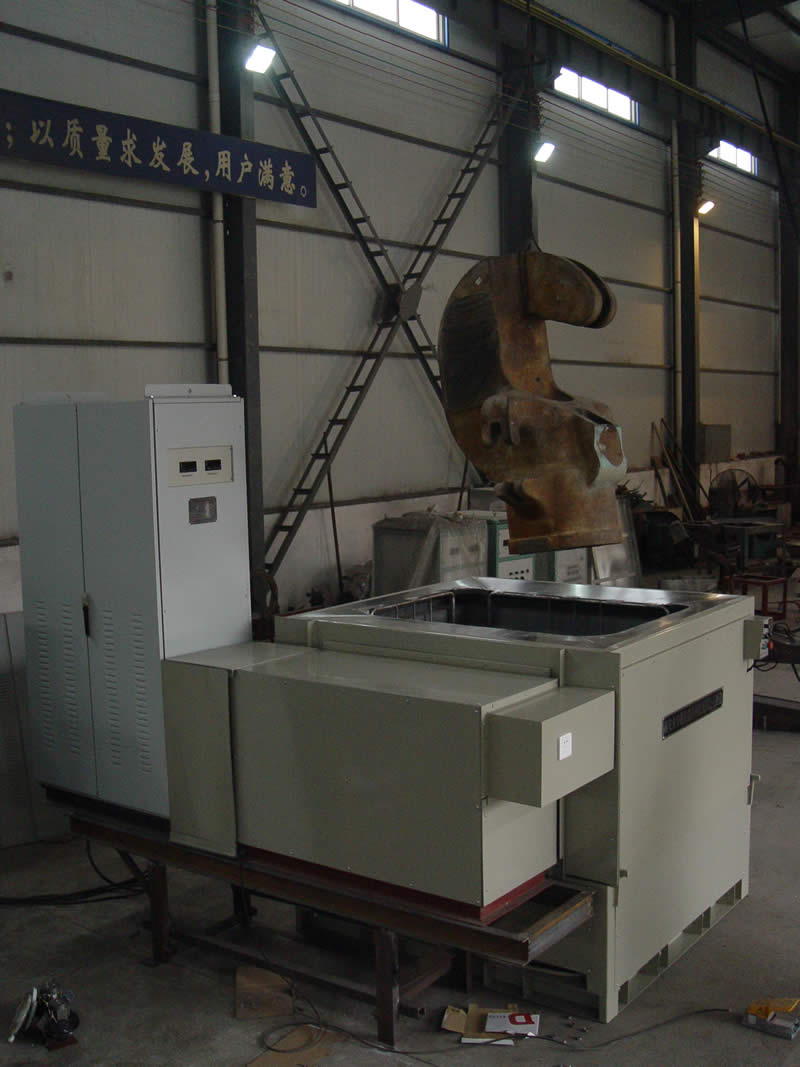

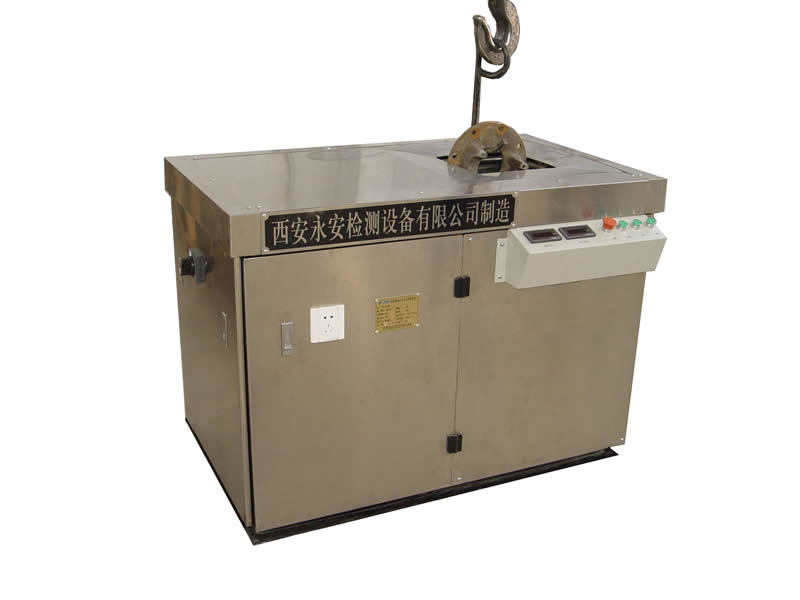

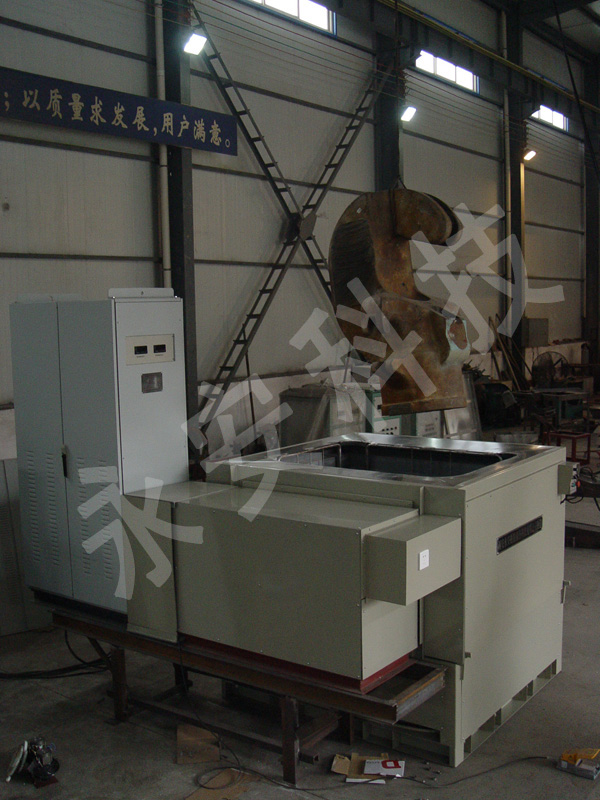

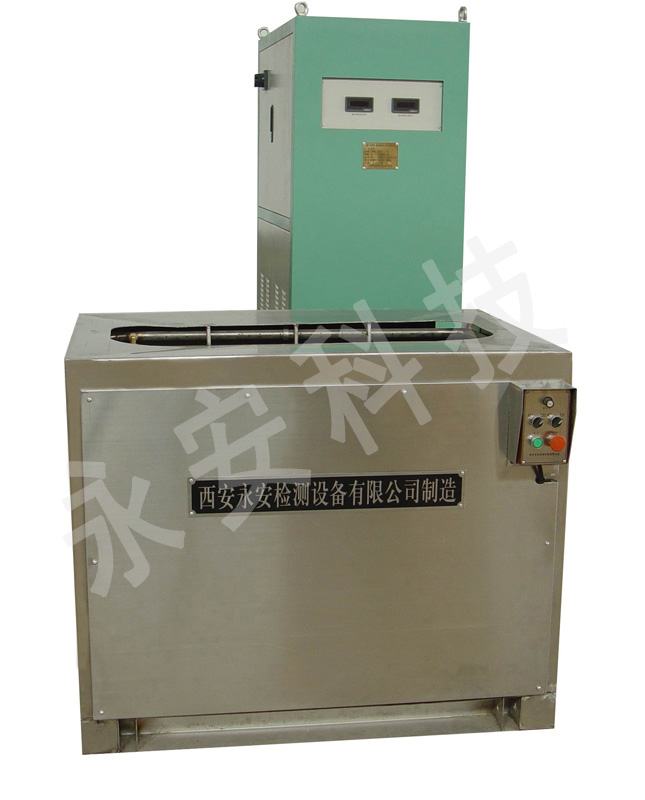

XJD-A型旋转磁场井式多功能探伤机

适用范围：

适用于各种复杂形状铁磁性工件的磁粉探伤，如铁路机车车辆车钩钩体、钩舌、轴箱体、安装座、齿轮 、齿轮支架、叉形接头等等形状复杂的铸造、锻造件的磁粉探伤

特点及技术指标

1.   采用自主知识产权的旋转磁场磁化技术对探伤零件非接触磁化，满足复杂形状零件探伤需要，检测可靠，效率高

2.   探伤零件垂直吊挂，不须摘除吊具即可探伤，减少了装卡工序，操作简便效率高

3.   磁化电流由可控硅调压模块控制，电流大小可根据检测的需要随时调整

4.   采用荧光磁粉探伤，磁痕对比度更高

5.   PLC程序控制喷淋与磁化过程，减少影响探伤的人为因素，操作简单

6.   采用原位衰减退磁技术，剩磁小

7.   磁化装置立放，外观简洁占地面积小，磁悬液垂直回流损失少

8.   磁化方式：旋转磁场

9.   磁化峰值电流：0-2500A连续可调

10. 井口尺寸：300×300,395×175,400×400,500×350,660×620,750×750,800×600,900×700,1200×600，1200×700，1250×500,1350×970mm等等，可特殊订制

11. 磁化装置中心空载磁场强度：≥2400A/m

12. 检测灵敏度：清晰显示A1型标准试片15/50的人工缺陷

13. 剩磁：小于0.3mT

XJD-A Rotatory Magnetic Field Pit-Shape Multi-function Detector

Applicable scope

Suitable for all kinds of complicated shape of ferromagnetic workpiece magnetic particle inspection，

Such as railway locomotive vehicle couplers , coupler knuckle , axle box body, installation, gear,  fork joint and so on complex shape of magnetic particle inspection of casting and forging parts

Features and Technical parameters

1.        Adopt to the independent intellectual property rights of rotating magnetic field non-contact magnetization, magnetic field distribution more uniform, use and reliable

2.        Testing parts hang vertically, so it can test without removing the spreader, reducing the chucking process, it is really easy and efficient to operate;

3.        Magnetizing current controlled by SCR module of voltage regulation, current can be adjusted at any time according to the need of the inspection

4.        Using fluorescent magnetic powder detecting, magnetic marks have higher contrast ratio;

5.        PLC program control spray and magnetization process, which reduce the impact of human factors testing;

6.        Adopting the attenuation demagnetization in situ, it is easy to operate and have a small remanence;

7.   Magnetizing device vertically, appearance is concise and cover an area of an area small, less magnetic suspension vertical flow loss

8.   Magnetization mode: Rotating Magnetic Field

9.        The current of magnetization: 0-2500A  continuously adjustable

10. Wellhead size: 300×300,395×175,400×400,500×350,660×620,750×750,800×600,900×700,1200×600,1200×700,1250×500,1350×970mm,etc.Can be customized

11.    The central magnetic field strength of the magnetized device: ≥2400A/m

12.    Detecting sensitivity: Clearly displays the artificial faults of A1 standard test piece 15／50;

13.    Residual Field: ≤0.3mT
