产品名称: JZD-B2型机车轮对磁粉探伤机 适用范围: 适用于铁路内燃、电力机车全悬挂式、滚动抱轴承式以及抱轴瓦式等所有形式轮对大、中修时磁粉探伤
规  格: JZD-B2 产品类别: 轮对系列磁粉探伤机

产品说明

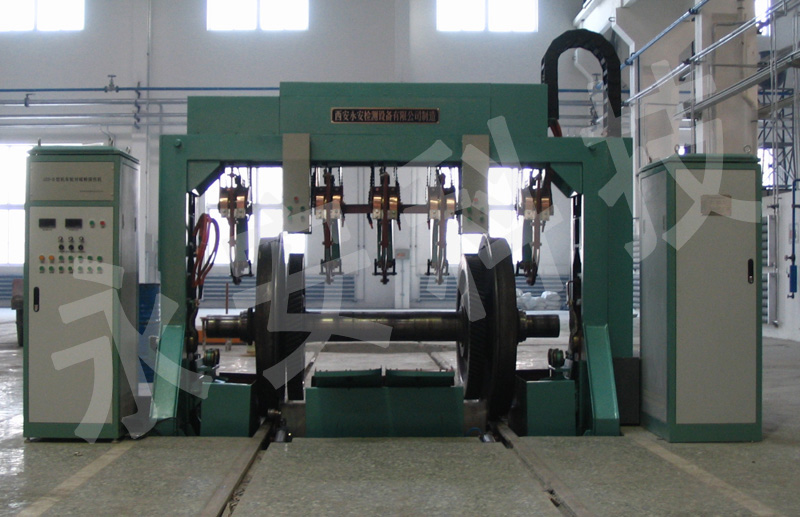

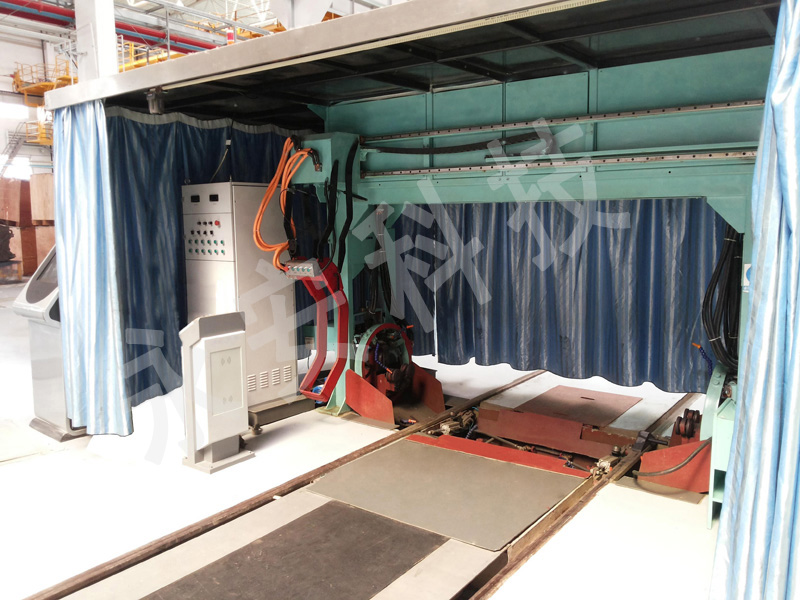

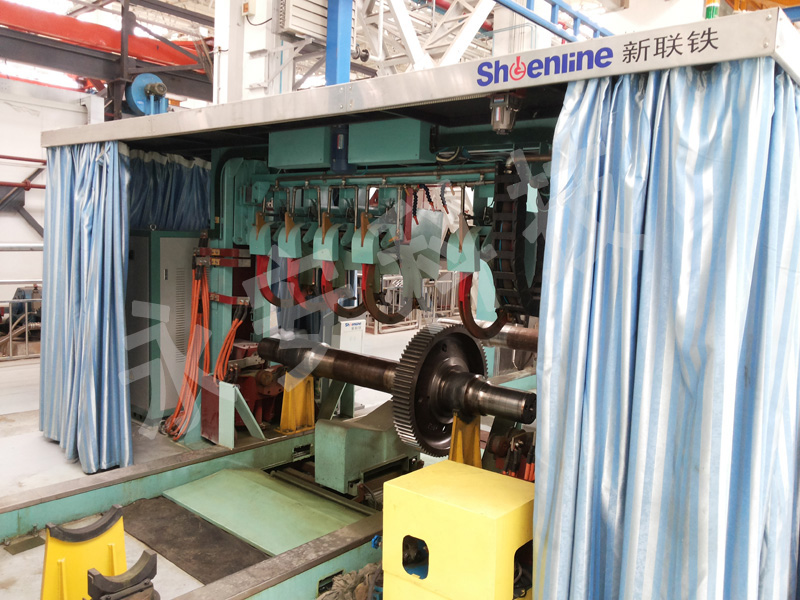

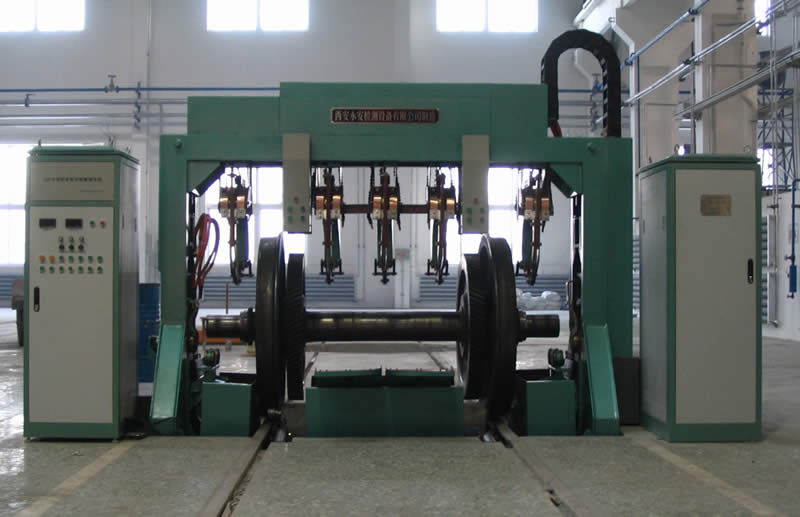

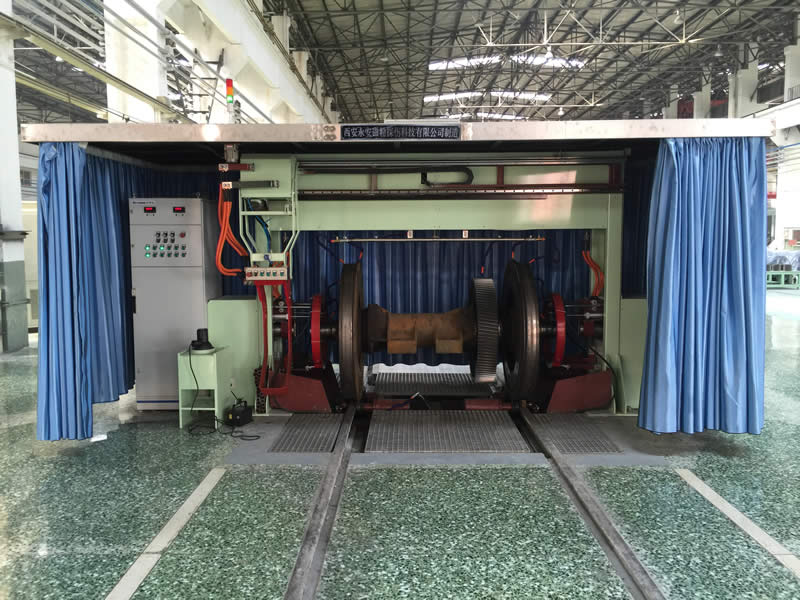

JZD-B2型机车轮对磁粉探伤机

适用范围

适用于铁路内燃、电力机车全悬挂式、滚动抱轴承式以及抱轴瓦式等所有形式轮对大、中修时磁粉探伤

特点及技术指标

1.   龙门式主机结构,跨在轮对股道上,适合轮对通过式探伤的需要

2.   纵向磁化采用自主知识产权的镀银接点和双螺旋锁紧结构开合线圈,保证磁化线圈接点不发热不打火,线圈通电可靠,磁化效果稳定,线圈寿命长

3.   复合磁化和左右全程移动的扇形辅助磁化装置相结合,满足轴身、牵引从动齿轮及车轮探伤需要

4.   对轴身进行磁化的开合线圈采用了可收起的机构,保护全悬挂式、滚动抱轴承式结构轮对的滚动轴承不被磁化

5.   轮对的旋转驱动具有变频调速功能,便于操作人员观察磁痕时方便地调节转速

6.   采用了先进的可控硅调流系统,磁化电流连续可调

7.   探伤过程采用进口PLC可编程控制器控制,操作简便可靠

8.   采用先进的电力补偿及控制技术,降低电源功率消耗

9.   磁化方式:周向磁化+纵向磁化+复合磁场+局部旋转磁场

10. 最大输入功率:60Kw

11. 周向磁化峰值电流:0-4800A连续可调

12. 纵向磁化峰值电流:0-2800A连续可调

13. 检测表面磁场强度:≮2400A/m

14. 检测车轴长度:2200mm~2600mm

15. 检测齿轮回转直径:750-1050mm

16. 检测车轮直径:1000-1350

17. 退磁方式:原位衰减法

18. 检测灵敏度:清晰显示A1型标准试片15/50的人工缺陷

19. 剩磁:不大于0.3mT

20. 主机外形尺寸:3.1×1.2×2.5m

21. 主机总重:3250kg


JZD-B2 Magnetic Particle Flaw Detector for locomotive wheel pair

Applicable scope

It is suitable for the surface magnetic particle testing of locomotive wheel pair, including diesel and electric locomotive, all forms wheel pair such as full suspension type, rolling bearing type and axle suspension wheel bearing type

Features and Technical parameters

1.        The gantry structure of mainframe is suitable for the wheel pair detected through it, especially for matching the examining and repairing lines of wheel pair.

2.        Longitudinal magnetization coil with independent intellectual property rights of the double helix locking opening and closing coil, guarantee the magnet coil contact not fever ,  magnetizing effect is stable, the coil have long service life

3.        Compound magnetization and movable fan shape auxiliary magnetic device, meet axis,traction driven gear and the wheel testing needs

4.        To the opening and closing magnetization coil of axis body, adopted a collapsible mechanism, protect rolling bearing from the magnetization

5.        To the rotation of the wheel drive with frequency control , easy operater to adjust speed, observing magnetic mark

6.        Magnetizing current controlled by SCR module of voltage regulation,It can be adjusted at any time

7.        Inspection process adopts imported PLC programmable controller control, easy operation and reliable

8.        Adopting advanced electric power compensation and controlling technology, reducing the  power consumption

9.        Magnetization mode: resultant magnetic field+rotating magnetic field

10.    Input power: 60kW

11.    The peak value current of circular magnetization:0-4800A continuously adjustable

12.    The peak value current of Longitudinal magnetization:0-2800A continuously adjustable

13.    Magnetic field intensity on detection surface: ≥ 2400 a/m

14.    lenth of tested axis:2200-2600mm

15.    diameter of tested gear:750-1050mm

16.    diameter of tested weel:1000-1350mm

17.    Demagnetization method: in situ decay

18.    Detecting sensitivity: Clearly displays the artificial defect of A1 standard test piece 15/507/50

19.    Residual Field: ≤0.3mT

20.    Mainframe exterior size: 3.1m×1.2m×2.5m

21.    Mainframe weight: 3250kg
